PKD-60B

PKD-60B

Standard Series SMPS

  • 5V DC/12V DC Output
  • 3A/2A Current
  • AC Input selectable by switch
  • 37 Khz Working Frequency

Technical Data

Model & SpecificationPKD-60B
Channel 1Channel 2
DC output Voltage, Current5V 0~3A24V 0~1.8A
Wave and Noise75mVp-p150mVp-p
Inlet Wire Stability± 0.5%± 0.5%
Load Stability± 0.5%± 4%
Efficiency76%76%
Adjustable Range for DC Voltage± 10%± 5%
Input Voltage Range85~264VAC 120~370VDC 47~63Hz
Impact Current30A/115VAC 60A/230VACCold start current
Overload Protection105% ~ 150% cut off the output, automatic recovery
Setup, Rise, Hold up time300ms, 50ms, 80ms/230VAC at full load
Withstand VoltageI/P–O/P: 1.5kV I/P–FG: 1.5kV O/P–FG 0.5kV 1minute
Isolation ResistanceI/P–O/P I/P–FG O/P–FG: 500VDC/100MΩ
Working Temperature– 10°C ~ +50°C
Dimension and Weight0.55kg159 x 98 x 38mm

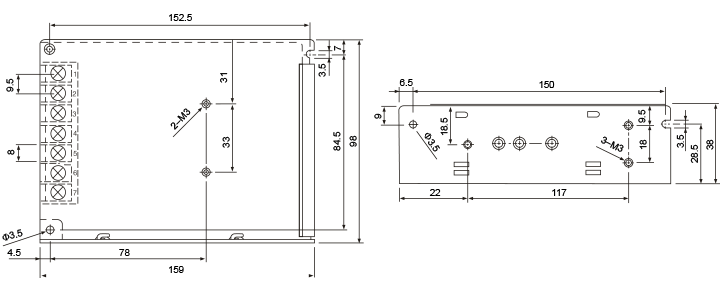

Dimension Drawing


Connection Diagram
