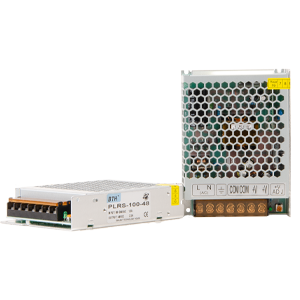

PLRS-100-48

PLRS-100-48

Low Profile Series SMPS

  • 48V DC Output
  • 2.3A Current
  • AC Input selectable by switch

Technical Data

Model & SpecificationPLRS-100-48
DC output Volt, Current, Power48V, 2.3Amp.,100W
Efficiency91%
Dimension134*97*30mm
Input Voltage88~264VAC
Input Current1.9A/115VAC / 1.2A/230VAC
Voltage Adj. Range21.6 ~ 28.8V
CoolingBy free air convection cooling
Ripple and Noise 1200mVp-p
Inrush Current (typ.)50A/230VAC
Over Load protection 2110%~150% rated output power
Setup, Rise, Time at full load500ms, 30ms/230VAC / 500ms, 30ms/115VAC
Load Regulation 3± 0.5%
Withstand VoltageI/P–O/P: 1.5kV I/P–FG: 1.5kV O/P–FG: 0.5kV
Isolation ResistanceI/P–O/P I/P–FG O/P–FG: 500VDC/100MΩ
Working Temp., Humidity– 30°C ~ +50°C / 20~90% RH non-condensing

Mechanical Specification


Derating Curve
