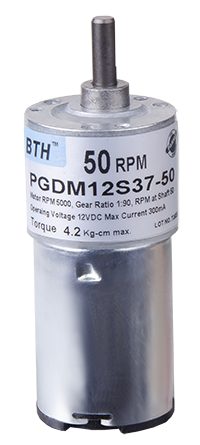

PGDM-12S37-50
12VDC Geared Motor, 50 RPM
● Eccentric output shaft gearbox
● Low noise and low current
● Long life gearbox
Technical Data
| MODEL | PGDM-12S37-50 |
|---|---|
| Voltage (V) | 12 VDC |
| RPM | 50 |
| Torque(kgf-cm) | 4.2 |
| No Load Current (A) | 150 mA |
| Max. Efficiency Current (A) | 500 mA |
| Stall Current (A) | 3.2 A |
| Motor | KD3448S1 |
Dimension Drawing
