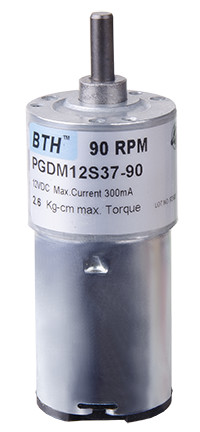

PGDM-12S37-90
12VDC Geared Motor, 90 RPM
● Eccentric output shaft gearbox
● Low noise and low current
● Long life gearbox

Technical Data
MODEL | PGDM-12S37-90 |
---|---|
Voltage (V) | 12 VDC |
RPM | 90 |
Torque(kgf-cm) | 2.6 |
No Load Current (A) | 150 mA |
Max. Efficiency Current (A) | 500 mA |
Stall Current (A) | 3.2 A |
Motor | KD3448S1 |
Dimension Drawing
