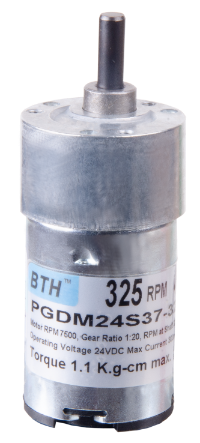

PGDM-24S37-325
24VDC Geared Motor, 325 RPM
● Eccentric output shaft gearbox
● Low noise and low current
● Long life gearbox
Technical Data
| MODEL | PGDM-24S37-325 |
|---|---|
| Voltage (V) | 24 VDC |
| RPM | 325 |
| Torque(kgf-cm) | 1.1 |
| No Load Current (A) | 100 mA |
| Max. Efficiency Current (A) | 400 mA |
| Stall Current (A) | 3 A |
| Motor | KD3448T2 |
Dimension Drawing
