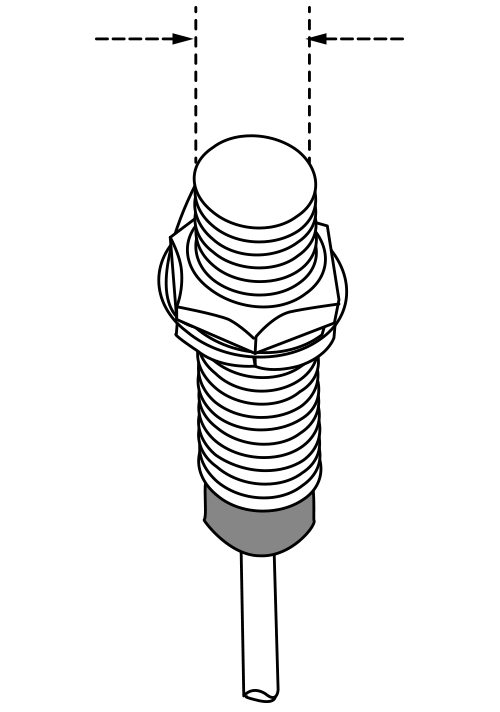

BIR12-TC4FL
Inductive Proximity Sensor
- 12mm
- Break (NC)
- 4mm Sensing Distance
- IP 67
Technical Data
| Parameters | Details |
|---|---|
| Function | Break (NC) |
| Detecting Distance | 4mm |
| Switching Hysteresis | Max. 10% of Sr |
| Standard Detecting Target | 12 x 12 x 1mm (Iron) |
| Setting Distance | 4mm ± 10% |
| Power Supply (Operating Voltage) | 10-60VDC |
| Current Consumption | <0.8mA |
| Response Frequency | 1 kHz |
| Residual Voltage | Max. 4V |
| Temperature Drift | ±10% Max. of detecting distance at +20ºC within temperature range of –25 to +70ºC |
| Control Output | 200mA |
| Insulation Resistance | Min. 50M OHM (at 500VDC) |
| Dielectric Strength | 1500VAC 50/60Hz for 1 minute |
| Vibration | 1mm amplitude at frequency of 10 to 55Hz in each of X, Y, Z directions for 2 hours |
| Shock | 500m/s squared (50G) in X, Y,Z direction for 3 times |
| Indicator | Operating indicator (RED LED) |
| Ambient Temperature | –25 to +70ºC (non–freezing condition) |
| Storage Temperature | –30 to +80ºC (non-freezing condition) |
| Ambient Humidity | 35 to 95% RH |
| Protection Circuit | Surge protection circuit, Overload & short circuit protection (except BIR8 series) |
| Protection | IP67 |
| Weight | Approx. 65g |
| Approval | CE |
Dimension Drawing
Connection Diagram
