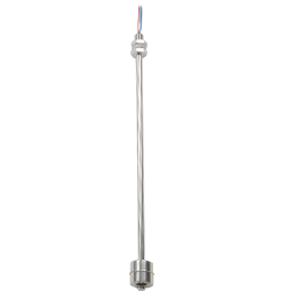

PSC2-300-1/2-S
Two Point, One Ball, SS Body Level Sensor
● Float Length 28mm
● Temp. -40°~125°C
● Contact: NC/NO
● Float Material SS 316
Technical Data
| Parameters | Details |
|---|---|
| Model | PSC2-300-1/2-S |
| Operation Life | 1*10⁶ (DC:5V, 10mA) |
| Insulation Resistance | ≥100MΩ |
| Contact Resistance | ≤ 0.4Ω |
| Max. Limiting Current | 1.0A |
| Max. Switching Current | 0.5A |
| Contact min. Pressure | DC: 250V |
| Max. Switching Voltage | 100V |
| Max. Contact Power | 10W |
| Switch Type | NO |
| Min. Shock Resistance | 30G |
| Suitable Temperature | -40°C ~ 120°C |
| Min. Vibration | 30G(10~50Hz) |
| Humidity | 95%RH(80°C) |
| Waterproof | (Float Ball)6% (1000hr) |
| For | Water |

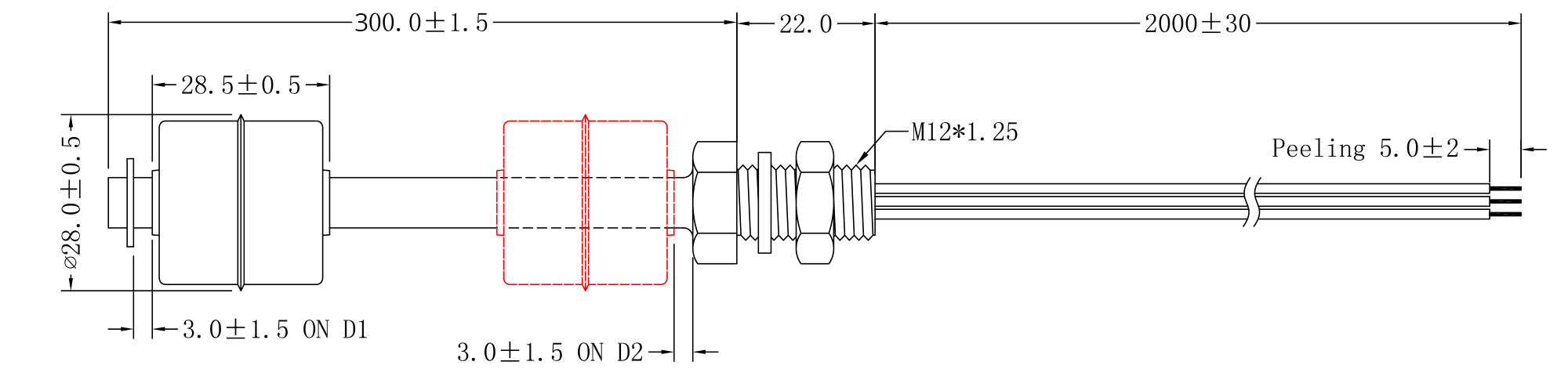

Dimension Drawing
Internal Schematic Diagram
