KT-22N-1M
Magnetic Sensor
- Gear Tooth Sensor
- 3-Wire type
- NPN Current Sinking
- Solid State Output, Normally Open
- IP 67
Technical Data
| Parameters | Details |
|---|---|
| Wiring Method | 3-Wire Type |
| Switching Logic | Solid State Output, Normally Open |
| Sensor Type | NPN Current Sinking |
| Operating Voltage | 3.5~24 VDC |
| Switching Current | 25 mA. max. |
| Contact Rating | 0.6 W max. |
| Current Consumption | 7 mA @24V DC max. |
| Voltage Drop | 0.6V @25mA max. |
| Leakage Current | 0.01 mA max. |
| Indicator | --- |
| Cable | Ø4.5, 3C, PVC |
| Response Frequency | 50K Hz |
| Response Distance | 2 mm max. |
| Temperature Range | -10 ~ 70 ˚C |
| Shock | 50 G |
| VIbration | 9 G |
| Enclosure Classification | IEC 529 IP 67 |
| Protection Circuit | 2 |

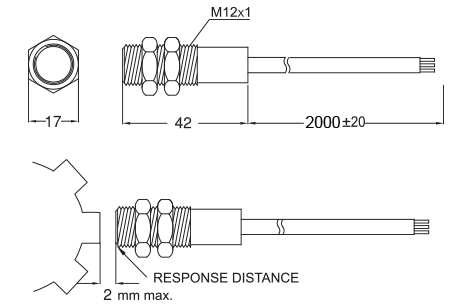

Dimension Drawing

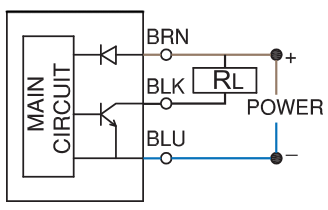

Connection Diagram
