KT-28N-2M
Magnetic Proximity Sensor
- 11mm sensing distance
- 3-Wire type
- NPN Current Sinking
- Solid State Output, Normally Open
- IP 67
Technical Data
| Parameters | Details |
|---|---|
| Wiring Method | 3-Wire Type |
| Switching Logic | Solid State Output, Normally Open |
| Sensor Type | NPN Current Sinking |
| Operating Voltage | 5~30 VDC |
| Switching Current | 100 mA. max. |
| Contact Rating | 6 W max. |
| Current Consumption | 18 mA @24V DC max. |
| Voltage Drop | 0.6V @25mA max. |
| Leakage Current | 0.01 mA max. |
| Indicator | Red LED |
| Cable | ø3.3, 2C, PVC |
| Operating Frequency | 1000K Hz |
| Sensing Distance | 12 mm max. |
| Temperature Range | -10 ~ 70 ˚C |
| Shock | 50 G |
| VIbration | 9 G |
| Enclosure Classification | IEC 529 IP 67 |
| Protection Circuit | 3, 4 |

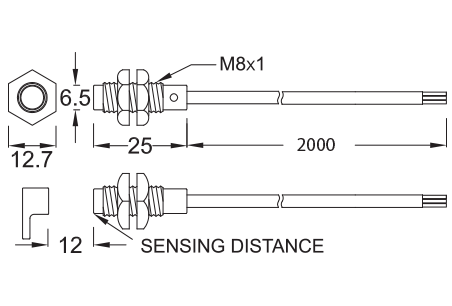

Dimension Drawing

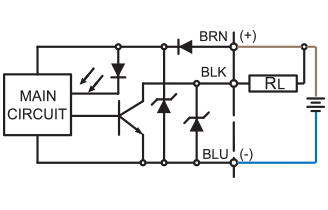

Connection Diagram
