KT-05N-1M
Magnetic Sensor
- NPN Current Sinking
- Solid State Output, Normally Open
- 3-Wire type
- IP 67
Technical Data
| Parameters | Details |
|---|---|
| Wiring Method | 3-Wire type |
| Switching Logic | Solid State Output, Normally Open |
| Sensor Type | NPN Current Sinking |
| Operating Voltage | 5 ~ 30 V DC |
| Switching Current | 200 mA max. |
| Contact Rating | 6 W max. |
| Current Consumption | 8 mA @ 24 V DC max. |
| Voltage Drop | 1 V @ 200 mA max. |
| Leakage Current | 0.01mA max. |
| Indicator | Red LED |
| Cable | Ø2.8, 3C, PVC |
| Operating Frequency | 1000 Hz max. |
| Magnet Requirement | 80 Gauss |
| Temperature Range | -10 ~ 70 ˚C |
| Shock | 50 G |
| VIbration | 9 G |
| Enclosure Classification | IEC 60529 IP67 |
| Protection Circuit | 2, 3, 2004 |
Dimension Drawing

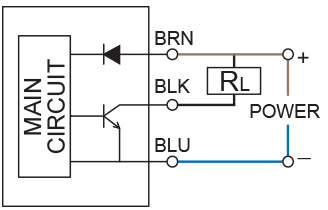

Connection Diagram
