KT-40P-1M
Magnetic Sensor
- 3-Wire type
- PNP Current Sourcing
- Solid Sate Output, Normally Open
- IP 67
Technical Data
| Parameters | Details |
|---|---|
| Wiring Method | 3-Wire Type |
| Switching Logic | Solid State Output, Normally Open |
| Sensor Type | PNP Current Sourcing |
| Operating Voltage | 10 ~ 30 V DC |
| Switching Current | 100 mA max. |
| Contact Rating | 3 W max. |
| Current Consumption | 8 mA @ 24 V DC max. |
| Voltage Drop | 1.5 V max. |
| Leakage Current | 0.01 mA max. |
| Indicator | Yellow LED |
| Cable | ø3, 3C, PUR |
| Operating Frequency | 1000 Hz |
| Magnet Requirement | 45 Gauss |
| Temperature Range | -10 ~ 70 ˚C |
| Shock | 50 G |
| VIbration | 9 G |
| Enclosure Classification | IEC 60529 IP67 |
| Protection Circuit | 2,3,4 |

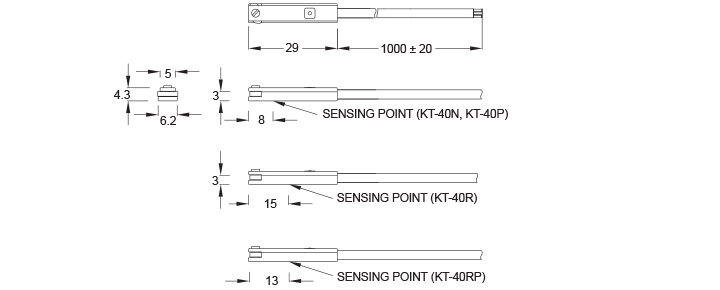

Dimension Drawing

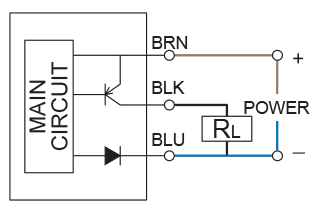

Connection Diagram
