- 3-Wire type
- SPST, Normally Open
- IP 67
| Parameters | Details |

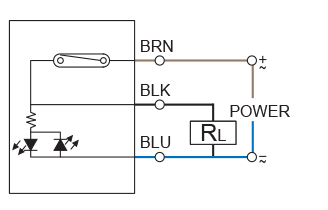

| Wiring Method | 3-Wire Type |
| Switching Logic | SPST, Normally Open |
| Sensor Type | Reed Switch |
| Operating Voltage | 10 ~ 30 V DC / AC |
| Switching Current | 500 mA max. |
| Contact Rating | 10 W max. |
| Current Consumption | 5 mA @ 24 V DC max. |
| Voltage Drop | 0.1 V @ 100 mA max. |
| Leakage Current | - |
| Indicator | Yellow LED |
| Cable | ø2.5, 3C, PUR |
| Operating Frequency | 200 Hz |
| Magnet Requirement | 50 Gauss |
| Temperature Range | -10 ~ 70 ˚C |
| Shock | 30 G |
| VIbration | 9 G |
| Enclosure Classification | IEC 60529 IP67 |
| Protection Circuit | 1 |
