| Sensing Distance | Diffuse Reflection |
| Sensing Type | 1000mm (300 x 300) |
| Emitting light | Infrared LED 940 nm |
| Operating Voltage | 90~260VAC / 24 ~ 30VDC |
| Current Consumption | 25 mA Max. |
| Load Current | Relay : DC30V 5A / AC 250V 5A |
| Output Type(Selectable) | Relay Out Com/NO |
| Response Time | 1.5 ms Max. |
| Time Delay Function | 0.2 Sec time delay function selectable |
| Insulation Resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Operating Temperature | -20°C ~ + 60°C |
| Ambient Humidity | 35% ~ 85% RH |
| Protection Degree | IP65 |
| Material | ABS |

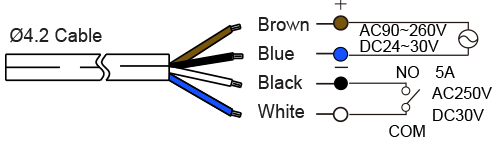

| Wiring Method | Pre-wired Ø4.2 x 2 M / 4-wires |
