BY-KT300F
Mini Photo Sensor
- 300mm Sensing Range
- Cable Type
- PNP/NPN (Selectable)
- IP64
Technical Data
| Parameters | Details |
|---|---|
| Sensing Type | Diffuse Reflection |
| Sensing Distance | 300mm (white paper 300 x 300mm) |
| Emitting Light | Infrared LED 850 nm |
| Operating Voltage | 12~24VDC |
| Current Consumption | 25 mA Max. |
| Load Current | 100 mA Max. at DC24V |
| Output type (selectable) | PNP(NO) Dark on / PNP(NC) Light on |
| NPN(NO) Dark on / NPN(NC) Light on | |
| Response Time | ON: 1 ms /OFF: 1 ms |
| Ambient Light Source | 50,000 lux |
| Insulation Resistance | 20MΩ min. (DC500V) |
| Voltage with standability | AC1000V 60Hz for 60 Sec. |
| Operating Temperature | -20°C ~ + 60°C |
| Ambient Humidity | 35% ~ 85% RH |
| Protection Degree | IP64 |
| Material | ABS |
| Wiring method | Pre-wired Ø4.2 x 2 M / 4-wires |
| Weight | Approx. 60g |
Dimension Drawing

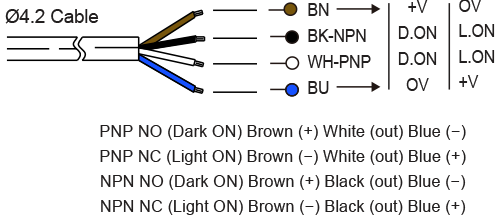

Connection Diagram
