BPR18-NK400F-CX
Diffuse Photo Sensor
- 400mm Sensing Range
- Connector Type
- NPN NO/NC (Selectable)
- IP65
Technical Data
| Parameters | Details |
|---|---|
| Output Mode | NPN |
| Wiring Method | M12 Connector Type |
| Sensing Range | 400mm |
| Current Consumption | <30 mA Max. |
| Load Current | 200mA Max. at DC24V |
| Emitting Light | Infrared LED 875nm |
| Operating Voltage | 10~ 30VDC |
| Operation Mode | NO (Dark on) / NC (Light on) by the wire Selection |
| Response Time | 1 ms Max. |
| Insulation Resistance | 20MΩ min. (DC500V) |
| Voltage Withstandability | AC1000V 60Hz for 60 Sec. |
| Operating Temperature | - 20ºC ~ + 70ºC |
| Ambient Humidity | 35% ~ 85% RH |
| Material | Xylan Plated Brass |
| Protection Degree | IP64 |
| Weight | Approx. 80g |

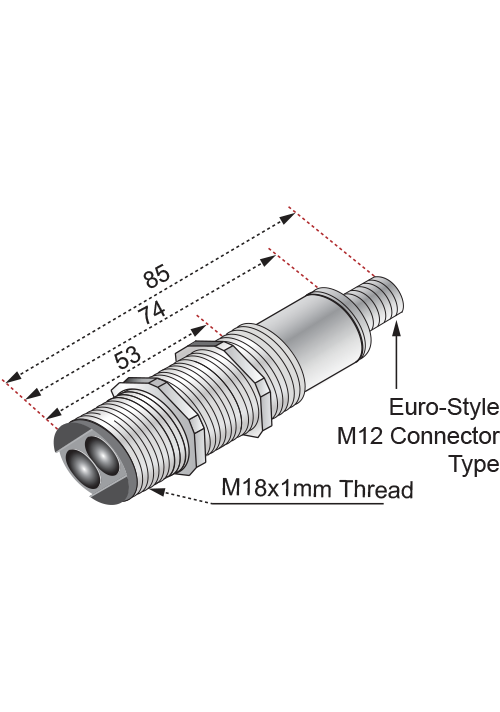

Dimension Drawing

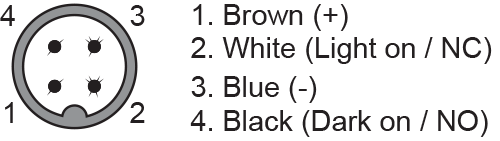

Connection Diagram
