| Output Mode | PNP |

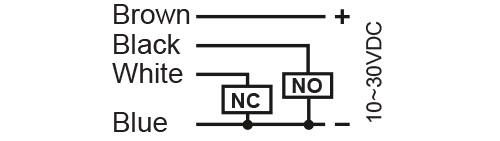

| Wiring Method | Pre-wired Ø4.2 x 2 M / 4-wires |
| Sensing Range | 400mm |
| Current Consumption | <30 mA Max.(white paper 100x100mm) |
| Load Current | 200mA Max. at DC24V |
| Emitting Light | Infrared LED 875nm |
| Operating Voltage | 10~ 30VDC |
| Operation Mode | NO (Dark on) / NC (Light on) by the wire Selection |
| Response Time | 1 ms Max. |
| Insulation Resistance | 20MΩ min. (DC500V) |
| Voltage Withstandability | AC1000V 60Hz for 60 Sec. |
| Operating Temperature | - 20ºC ~ + 70ºC |
| Ambient Humidity | 35% ~ 85% RH |
| Material | Nickel Plated Brass |
| Protection Degree | IP64 |
| Weight | Approx. 105g |
