| Slot Width | 15 mm |
| Min. Detection Object | Opaque (Ø0.5 x 10.0 mm) |
| Emitting Light | <0.1 mm |
| Hysteresis <0.1 mm | Infrared LED 940nm |
| Operating Voltage | 12~24 VDC |
| Current Consumption | 18 mA Max. |
| Load Current | 100mA Max. at 24VDC |
| Output Type | PNP(NO) Dark on / PNP(NC) Light on / NPN(NO) Dark on / NPN(NC) Light on |
| Response Time | 1 ms Max. |
| Ambient Illumination | Incandescent light 1,000 lux max. |
| Insulation Resistance | 20MΩ min. (DC500V) |
| Voltage with Standabiligy | AC500V 60Hz for 60 Sec. |
| Operating Temperature | -10°C ~ + 55°C |
| Ambient Humidity | 45% ~ 85% RH |
| Protection Degree | IP64 |
| Vibration Resistance | 1.5-mm peak-to-peak amplitude, 10 to 55 Hz, 2 hours each in X, Y, and Z directions |
| Shock Resistance | 50G, repeated 10 times each in X, Y, and Z directions |
| Material | PC |

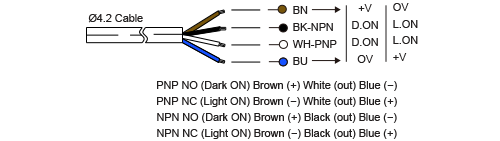

| Wiring Method | Pre-wired Ø4.2 x 2 M / 4-wires |
| Weight | Approx.55g |
