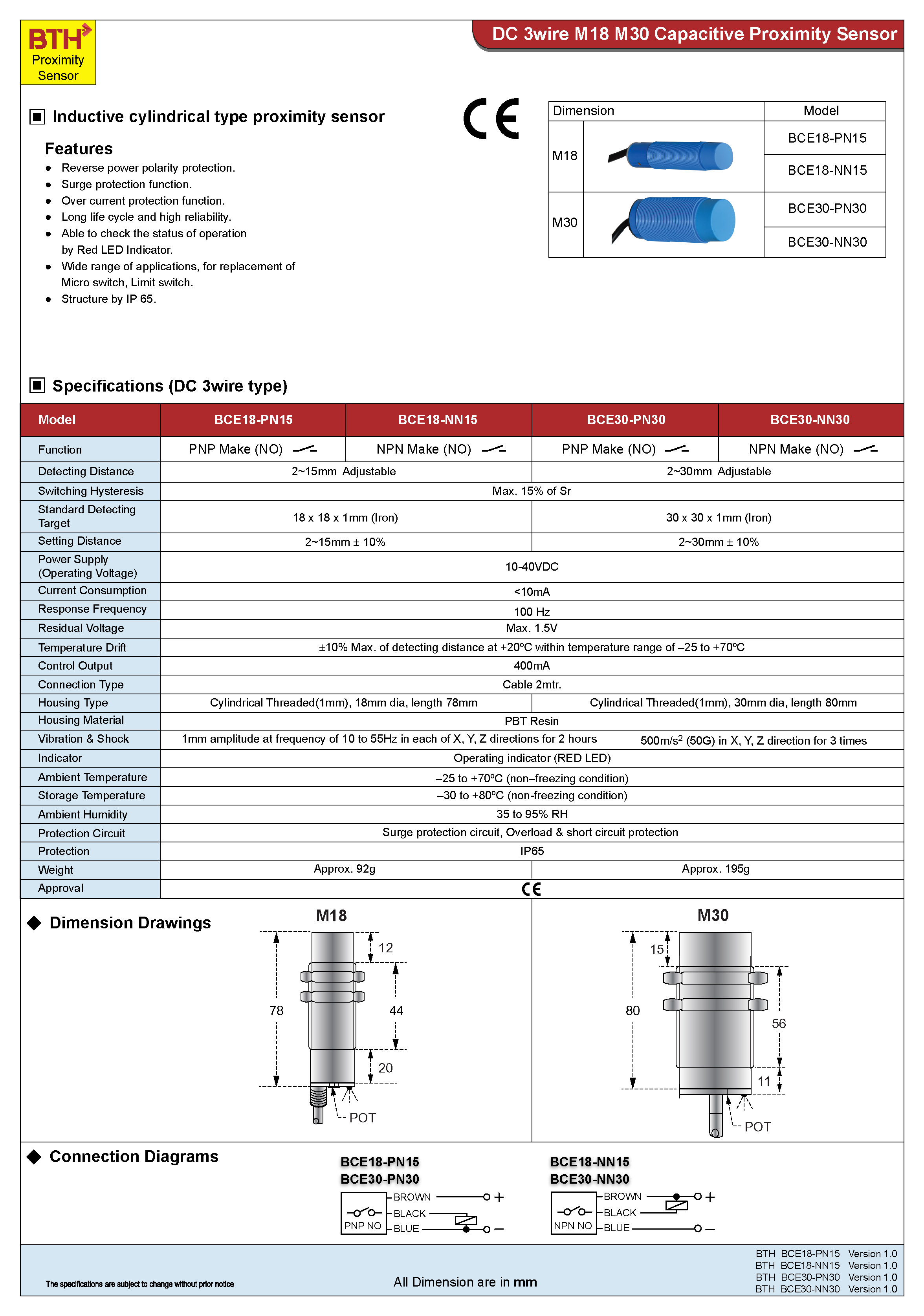

BCE30-PN30
Capacitive Proximity Sensor
- 30mm
- PNP (NO)
- 2~30mm Sensing Distance
- IP 67
Technical Data
| Parameters | Details |
|---|---|
| Function | PNP Make (NO) |
| Detecting Distance | 2-30mm Adjustable |
| Switching Hysteresis | Max. 15% of Sr |
| Standard Detecting Target | 30 x 30 x 1mm (Iron) |
| Setting Distance | 2-30mm ± 10% |
| Power Supply (Operating Voltage) | 10-40VDC |
| Current Consumption | <10mA |
| Response Frequency | 100 Hz |
| Residual Voltage | Max. 1.5V |
| Temperature Drift | ±10% Max. of detecting distance at +20ºC within temperature range of –25 to +70ºC |
| Control Output | 400mA |
| Connection Type | Cable 2mtr. |
| Housing Type | Cylindrical Threaded (1mm), 30mm dia, length 80mm |
| Housing Material | PBT Resin |
| Vibration & Shock | 1mm amplitude at frequency of 10 to 55Hz in each of X, Y, Z directions for 2 hours 500m/s squared (50G) in X, Y,Z direction for 3 times |
| Indicator | Operating indicator (RED LED) |
| Ambient Temperature | –25 to +70ºC (non–freezing condition) |
| Storage Temperature | –30 to +80ºC (non-freezing condition) |
| Ambient Humidity | 35 to 95% RH |
| Protection Circuit | Surge protection circuit, Overload & short circuit protection |
| Protection | IP65 |
| Weight | Approx. 195g |
| Approval | CE |
Dimension Drawing
Connection Diagram
