| DC output Voltage, Current | 24V 0~0.5A |
| Wave and Noise | 50mVp-p |
| Inlet Wire Stability | ± 0.5% |
| Load Stability | ± 0.5% |
| Efficiency | 75% |
| Adjustable Range for DC Voltage | ± 10% |
| Input Voltage Range | 85~264VAC 120~370VDC 47~63Hz |
| Impact Current | 30A/230VACCold start current |
| Setup, Rise, Hold up time | 200ms, 50ms, 20ms/230VAC at full load |
| Withstand Voltage | I/P–O/P: 1.5kV I/P–FG: 1.5kV O/P–FG: 0.5kV 1minute |
| Isolation Resistance | I/P–O/P I/P–FG O/P–FG: 500VDC/100MΩ |
| Working Temperature | – 10°C ~ +50°C |

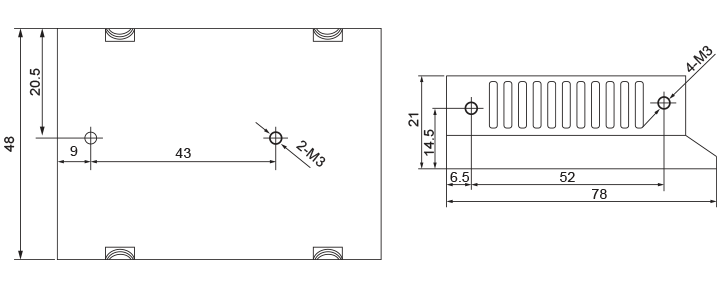

| Dimension and Weight | 0.15kg78 x 48 x 21mm |
