| Channel 1 | Channel 2 |
| DC output Voltage, Current | 12V 0~5A | –12V 0~5A |
| Wave and Noise | 120mVp-p | 120mVp-p |
| Inlet Wire Stability | ± 1% | ± 1% |
| Load Stability | ± 0.5% | ± 5% |
| Efficiency | 80% | 80% |
| Adjustable Range for DC Voltage | ± 10% | ± 5% |
| Input Voltage Range | 90~132VAC / 180~264VAC by switch 254~370VDC 47~63Hz | |
| Impact Current | 30A/115VAC 60A/230VAC Cold start current | |
| Overload Protection | 105% ~ 135% cut off the output, automatic recovery | |
| Setup, Rise, Hold up time | 200ms, 50ms, 20ms/230VAC at full load | |
| Withstand Voltage | I/P–O/P: 1.5kV I/P–FG: 1.5kV O/P–FG 0.5kV 1minute | |
| Isolation Resistance | I/P–O/P I/P–FG O/P–FG: 500VDC/100MΩ | |
| Working Temperature | – 10°C ~ +50°C | |

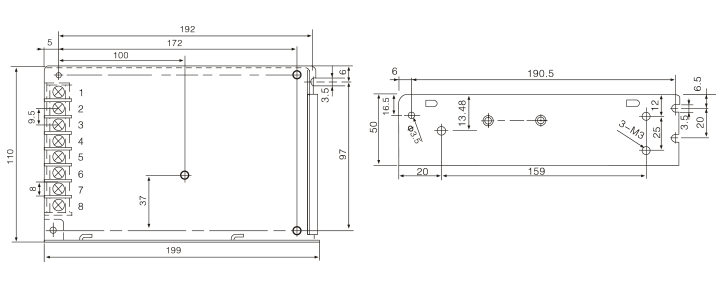

| Dimension and Weight | 0.9kg 199 x 110 x 50mm | |
