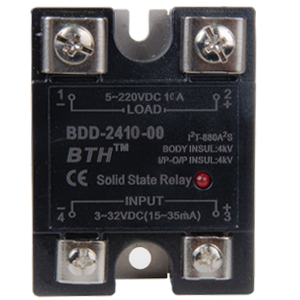

BDD-2410-00
Input DC, Working Voltage DC SSR
- Rated Current 10 Amp.
- Load voltage 12~250 VAC
- LED Input Signal Indicator
- Input Voltage 5~32VDC
Technical Data
| Model | BDD-2410-00 |
| Description | Single Phase SSR |
| Controlling Voltage | 5~32VDC |
| Controlling Current | 6~35mA |
| Make ON Voltage | 5VDC |
| Break OFF Voltage | 1VDC |
| Reverse Voltage | 32VDC |
| Load Voltage | 12~250VDC |
| Load Current | 10A |
| Instant Voltage | 20~400VDC |
| Voltage Drop in ON | <1.2VDC |
| On-Off Time | ≤5mS |
| Leakage Current in Off | ≤5mA |
| Dielectric Strength | ≥2500VAC |
| Insulation Resistance | 500MΩ 500VDC |
| Ambient Temperature | -30~80°C |
| Dimensions | 57.2L*43.5W*29H |
| Indicate Methold | LED |
| Mounting Type | Screw Fixing |
| Weigth | 10A≤110g 20A≤140g 40A≤145g |
Connection Diagram
