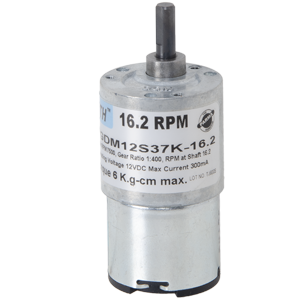

PGDM-12S37K-16.2
12VDC Geared Motor, 16.2 RPM
● Eccentric output shaft gearbox
● Low noise and low current
● Long life gearbox
Technical Data
| MODEL | PGDM 12S37K-16.2 |
|---|---|
| Voltage (V) | 12VDC |
| RPM | 10.8 |
| Torque(kgf-cm) | 6 |
| No Load Current (A) | 150mA |
| Max. Efficiency Current (A) | 500mA |
| Stall Current (A) | 3.8A |
| Motor | KD3429T1 |
Dimension Drawing
